SKYRC S100neo Smart LiPo Balance Charger 1S–6S

The SKYRC S100neo is a compact and versatile smart AC/DC battery charger designed for RC enthusiasts. It supports a wide range of battery chemistries, including LiPo, LiFe, Li-ion, LiHV, NiMH, NiCd, and Pb batteries.

With up to 100W charging power from AC input and up to 200W from DC input, the S100neo can deliver charging currents of up to 12A. It also works as an adjustable digital DC power supply, making it useful beyond battery charging.

Product Overview

The S100neo is the successor to the popular SKYRC e680 charger, combining a compact design with significantly greater power and functionality.

It supports 1S–6S lithium batteries and 1–15S NiMH/NiCd batteries, along with selected 3S, 6S, and 12S lead-acid batteries. The integrated color LCD display provides clear information during charging, while the simple three-button control system makes operation straightforward.

The charger can also operate as a DC power supply with adjustable voltage from 2V to 30V and current up to 12A.

Key Features

200W DC Charging Power

The S100neo delivers up to 200W charging power when powered through a suitable DC source.

100W AC Charging

Connect directly to standard AC power with an input range of 100–240V and charge at up to 100W without requiring a separate power supply.

Up to 12A Charging Current

The charger supports charging currents up to 12A, allowing compatible batteries to be charged quickly.

Wide Battery Compatibility

Supports multiple battery chemistries:

• LiPo
• Li-ion
• LiFe
• LiHV
• NiMH
• NiCd
• Pb

1S–6S Lithium Battery Support

Compatible with LiXX batteries ranging from 1S through 6S.

1–15S NiMH/NiCd Support

Provides broad compatibility with NiMH and NiCd battery packs from 1 to 15 cells.

Adjustable DC Power Supply

The S100neo can also function as a digital DC power supply with adjustable output voltage from 2V to 30V and current up to 12A.

PD/QC3.0 Fast Charging

Supports PD/QC3.0 fast-charging technology for compatible power sources.

Color LCD Display

The vibrant color display provides clear monitoring and intuitive navigation during operation.

Three-Button Operation

A simple three-button interface makes selecting charging modes and adjusting parameters easy.

Motor Run-In Function

The integrated motor run-in function supports 3–12V motors with adjustable current and operating time.

Specifications

Brand: SKYRC
Model: S100neo
Type: Smart AC/DC Battery Charger
AC Input: 100–240V, 50–60Hz
DC Input: 6–30V
Maximum AC Charging Power: 100W
Maximum DC Charging Power: 200W
Maximum Charging Current: 12A
Maximum Balance Current: 1A
Discharge Power: 5W main port / up to 20W balance port
Lithium Battery Support: 1–6S
NiMH/NiCd Support: 1–15S
Pb Battery Support: 3S / 6S / 12S
Weight: 340g
Dimensions: 105 × 105 × 62mm

Charging Current

LiPo / Li-ion / LiFe / LiHV / NiMH / NiCd / Pb:

0.1–0.5A
0.6–12A

Discharge Current

0.1–0.2A
0.3–2A

Balance Function

Maximum Balance Current: 1A

The balance function helps maintain consistent voltage across individual cells in multi-cell lithium battery packs.

DC Power Supply Mode

Output Voltage: 2–30V
Output Current: Up to 12A
Power: Up to 200W DC

This allows the S100neo to be used as an adjustable power source for compatible electronics and RC equipment.

DC Motor Run-In

Voltage: 3–12V
Current: 1–5A
Direction: Forward
Operating Time: 1–60 minutes

Protection features include:

• Motor Stall Protection
• Over-Current Protection
• Overload Protection

Additional Features

PD/QC3.0 Fast Charging
Charger Master Compatibility
Balance Charging
Battery Discharging
Storage Functions
Digital Power Supply Mode
Voltage Measurement
Compact Design
Color LCD Display

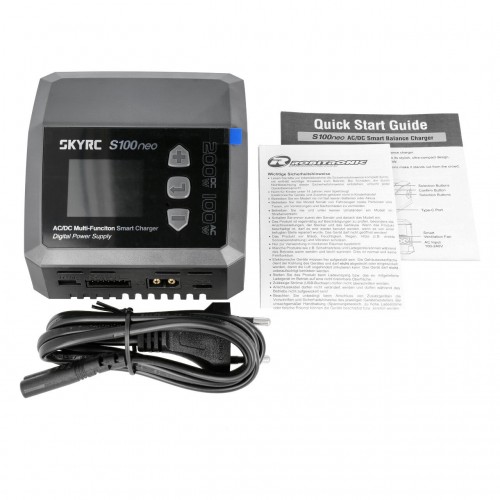

Package Includes

1 × SKYRC S100neo Charger
1 × User Manual

Why Choose the SKYRC S100neo

The SKYRC S100neo is more than a conventional RC battery charger. Its combination of 100W AC charging, 200W DC charging, 12A maximum current, wide battery compatibility, adjustable power-supply mode, and compact design makes it a versatile option for RC hobbyists.

It is particularly suitable for users who work with multiple RC platforms and want one charger capable of handling different battery chemistries and cell counts.

Ideal for:

• RC Cars
• RC Trucks
• RC Crawlers
• RC Airplanes
• RC Helicopters
• RC Boats
• Drones
• LiPo Battery Users
• Hobby Workshops
• RC Field Charging
