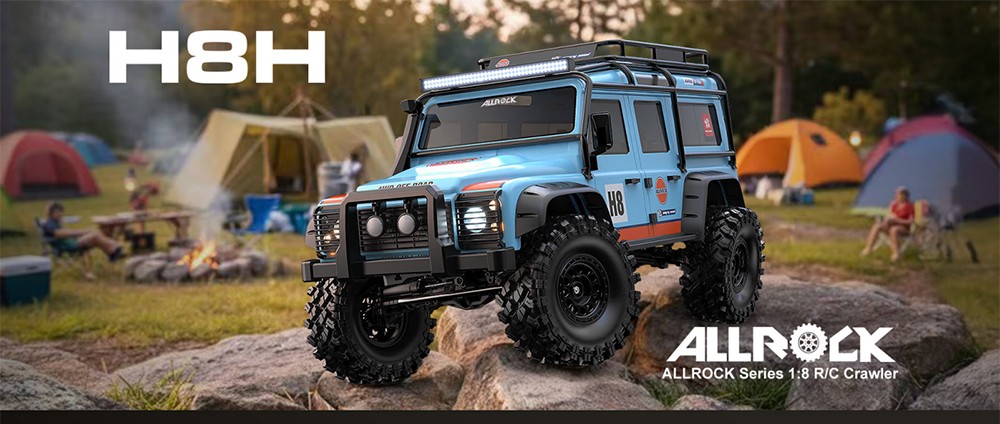

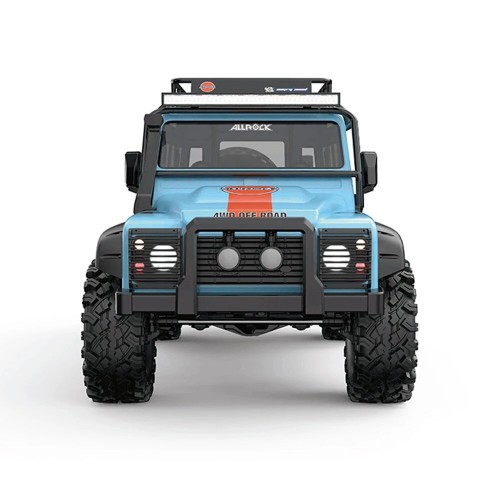

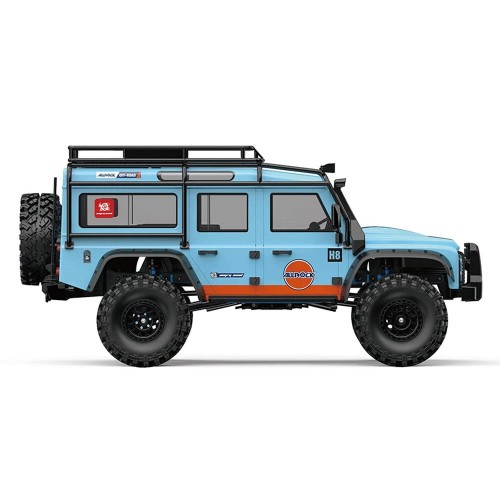

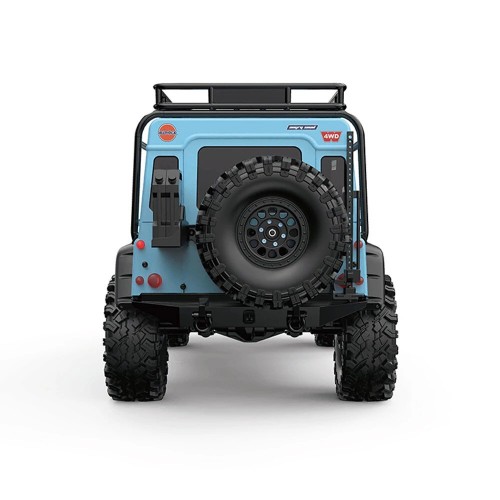

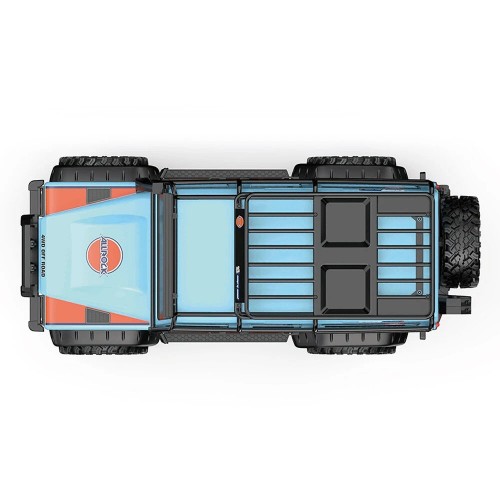

MJX H8H New 1/8 4WD Brushless RC Crawler – Front & Rear Differential Lock
Take on demanding off-road trails with the MJX H8H New 1/8 Professional Brushless RC Crawler, a large-scale rock crawler engineered for technical climbing, rugged terrain and realistic trail driving. Equipped with a 3970 2000KV sensored brushless motor, 80A FOC sensored ESC and 35kg steering servo, this crawler delivers controlled power and precise handling.
Its advanced features include remotely controlled front and rear differential locks, a two-speed transmission, portal axles, a four-link suspension system and rear Watt's linkage. Designed for serious RC enthusiasts, the MJX H8H combines scale-inspired engineering with impressive crawling capability.
Important: This version is supplied without a battery and charger unless selected separately.
Key Features
1/8 scale professional RC rock crawler
4WD drivetrain
3970 2000KV sensored brushless motor
80A FOC sensored brushless ESC
35kg steering servo
Remotely controlled front and rear differential locks
Remote-controlled two-speed metal transmission
Portal axles for off-road capability
Four-link suspension with rear Watt's linkage
2.4GHz 8-channel remote control
Control range of 120m or more
Slow and fast driving modes

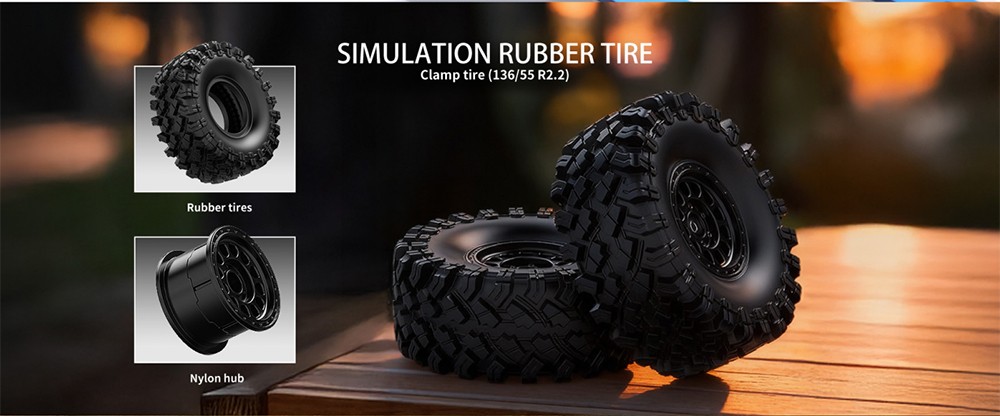

135mm large off-road tires
Metal gear servo for transmission shifting

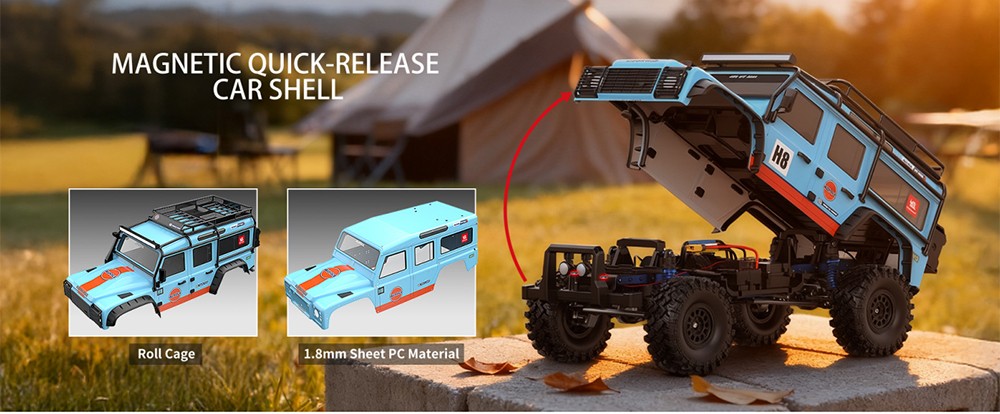

Screw-fixed body with front flip-up magnetic closure
Battery and charger available separately

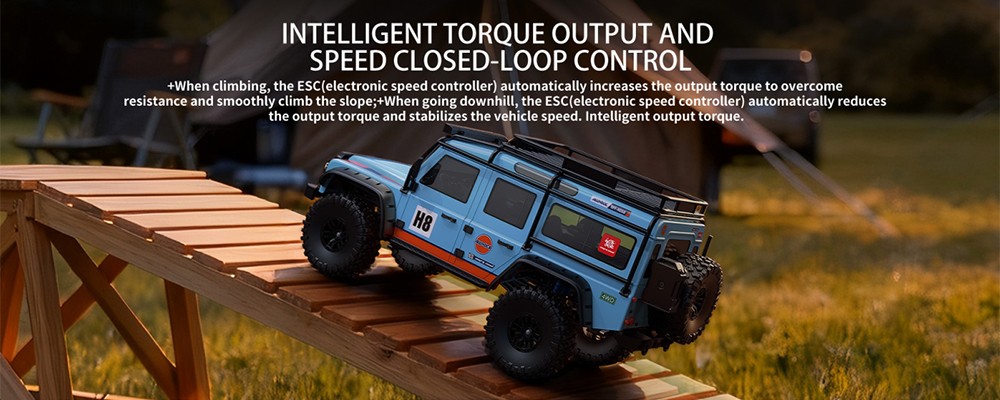

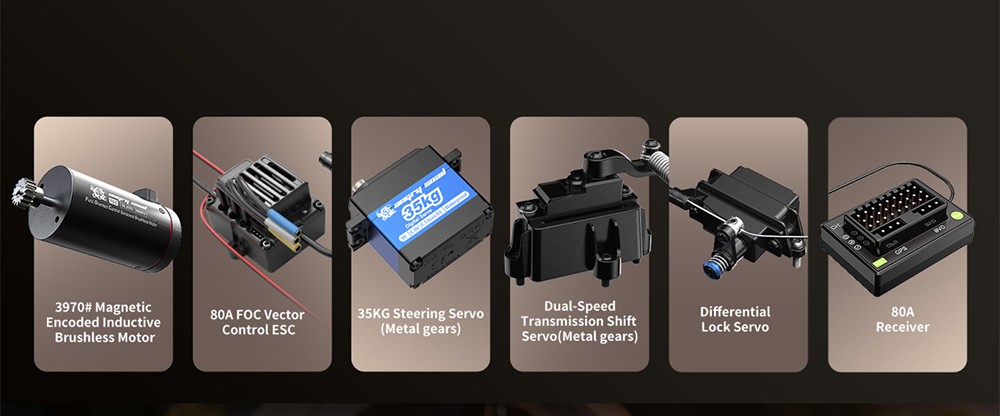

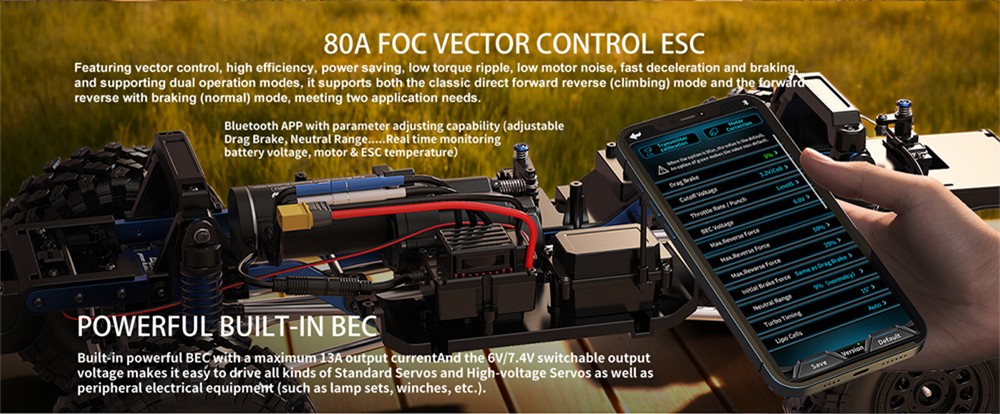

Powerful Sensored Brushless System
The MJX H8H is powered by a 3970 2000KV sensored brushless motor paired with an 80A FOC sensored brushless ESC.
The sensored power system supports smoother low-speed control, which is particularly useful when navigating technical obstacles, rocky surfaces and steep trails.
The included 35kg steering servo provides strong steering performance for a crawler of this size.

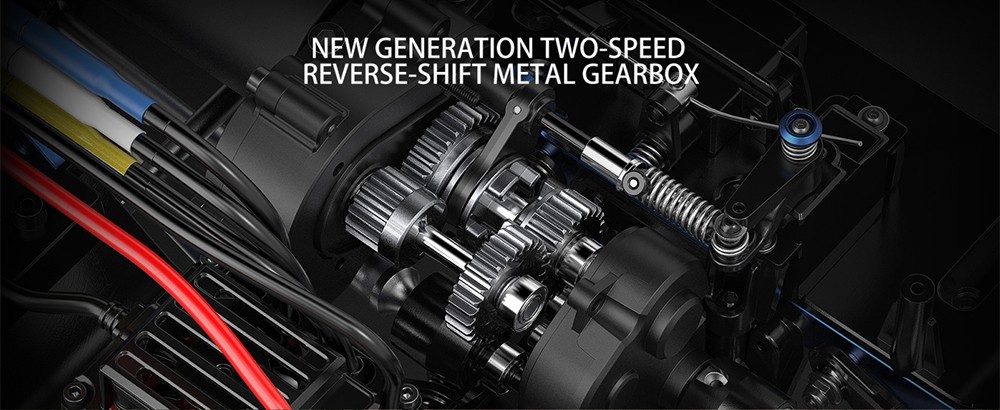

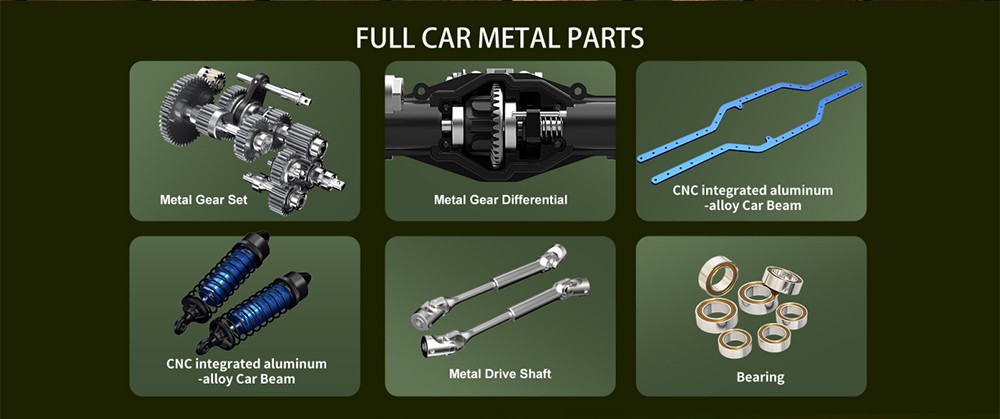

Two-Speed Remote-Controlled Transmission
The H8H features a two-speed metal transmission that lets you select the appropriate gear for different driving conditions using the remote control.
Slow gear: For technical crawling, controlled manoeuvres and obstacle climbing.
Fast gear: For quicker trail driving and covering open terrain.
Speed Specifications
Battery Configuration | Slow Gear | Fast Gear |
|---|---|---|
2S LiPo | 7.5km/h | 17km/h |
3S LiPo | 11km/h | 25km/h |
Actual speed may vary with battery condition, terrain and driving conditions.
Remote-Controlled Front & Rear Differential Locks
One of the H8H's standout features is its independently selectable front and rear differential locks.
The differential-lock system allows you to adjust traction for different obstacles and terrain conditions. When additional traction is needed, locking the differentials can help the wheels maintain drive across uneven surfaces.
The differential locks are operated remotely through dedicated servo mechanisms.

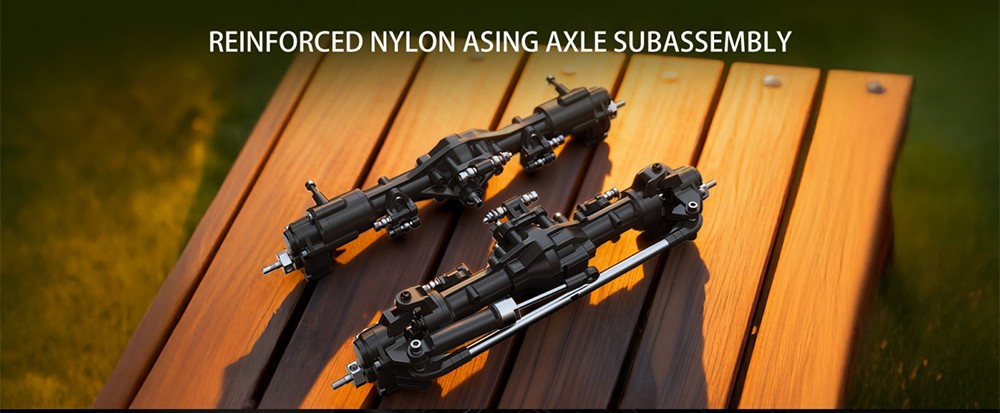

Portal Axles for Off-Road Driving
The MJX H8H features portal axles, a design that positions the wheel hubs to provide additional ground-clearance advantages around the axles.
Combined with the 4WD drivetrain and large 135mm tires, this setup is designed to help the crawler navigate rocky trails, uneven ground and challenging off-road obstacles.

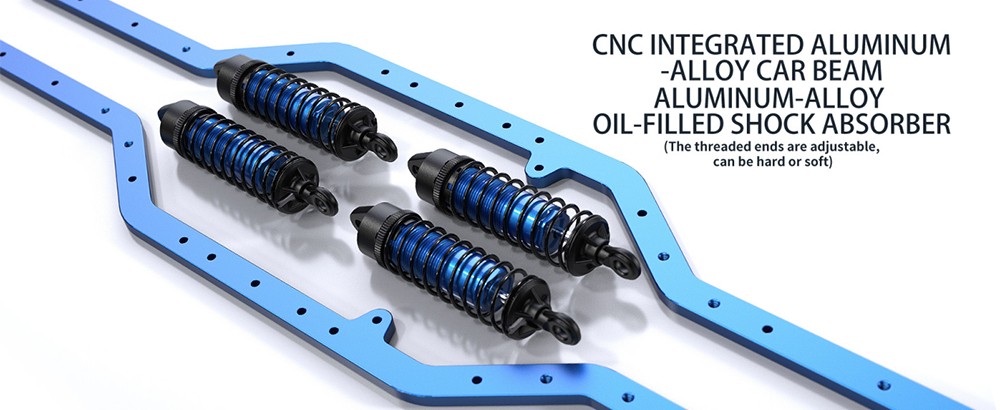

Advanced Suspension System
The crawler uses a four-link suspension system with rear Watt's linkage to support axle articulation and controlled movement across uneven terrain.
The steering servo is mounted on the axle, and the suspension layout is designed for serious crawling applications.

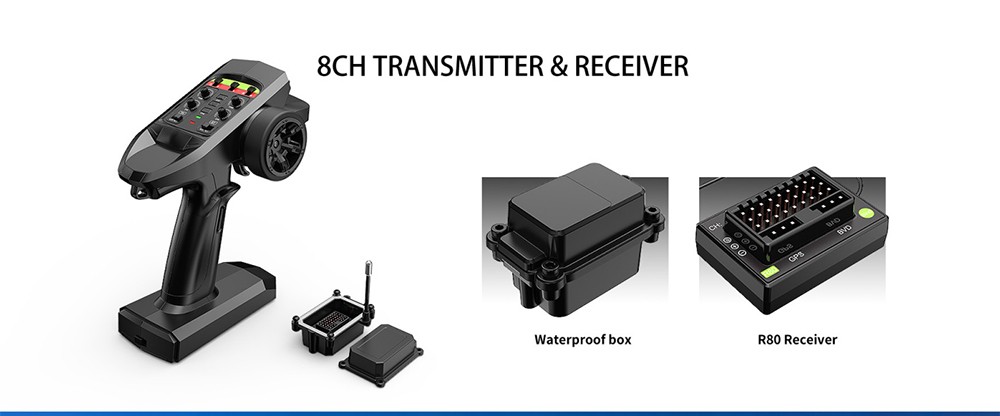

2.4GHz 8-Channel Remote Control
The included 8-channel transmitter provides wireless control over the crawler's driving functions and selectable mechanical systems.
Forward and reverse
Left and right steering
Two-speed transmission selection
Front differential locking
Rear differential locking
The system operates at 2.4GHz and offers a stated control range of 120m or more.
The transmitter requires 3 × AA batteries, which are not included.
Specifications
Specification | Details |
|---|---|
Brand | MJX |
Model | H8H New |
Scale | 1/8 |
Vehicle Type | Professional RC Rock Crawler |
Drive System | 4WD |
Motor | 3970 2000KV Sensored Brushless |
ESC | 80A FOC Sensored Brushless |
Steering Servo | 35kg |
Transmission | Remote-Controlled Two-Speed Metal Gear |
Differential Locks | Front and Rear, Remote-Controlled |
Axle Type | Portal Axles |
Suspension | Four-Link + Rear Watt's Linkage |
Transmitter Frequency | 2.4GHz |
Control Channels | 8CH |
Control Range | ≥120m |
Slow Gear Speed | 7.5km/h (2S) / 11km/h (3S) |
Fast Gear Speed | 17km/h (2S) / 25km/h (3S) |
Recommended Battery | 3S 11.1V 5000mAh LiPo, optional |
Battery Included | No, unless selected separately |
Charger Included | No, unless selected separately |

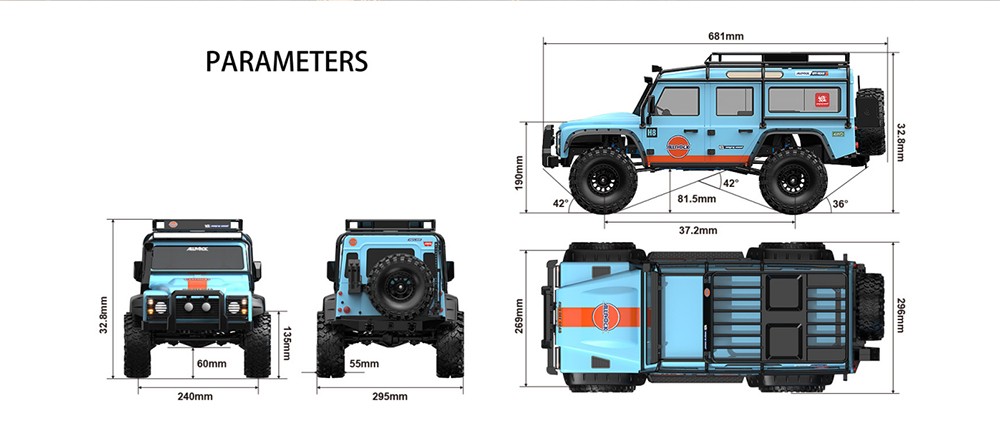

Vehicle Dimensions | 680 × 298 × 325mm |
Wheelbase | 373mm |
Track Width | 240mm |
Tire Diameter | 135mm |
Vehicle Weight | 5.5kg |
Package Dimensions | 75.5 × 37 × 41cm |

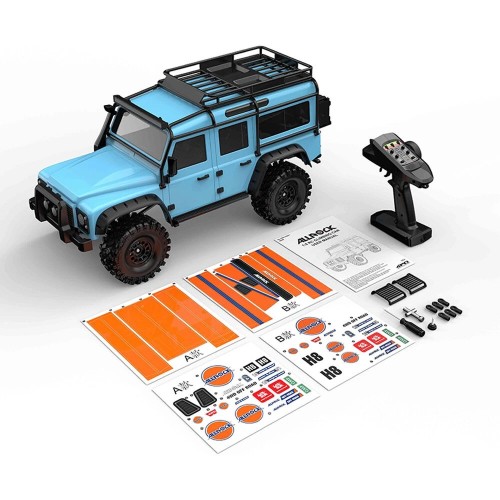

Package Includes
1 × MJX H8H New RC Crawler
1 × 2.4GHz 8-Channel Transmitter
1 × Instruction Manual
1 × Hex Wrench Set
1 × Screwdriver
Battery and charger are optional and must be purchased separately.

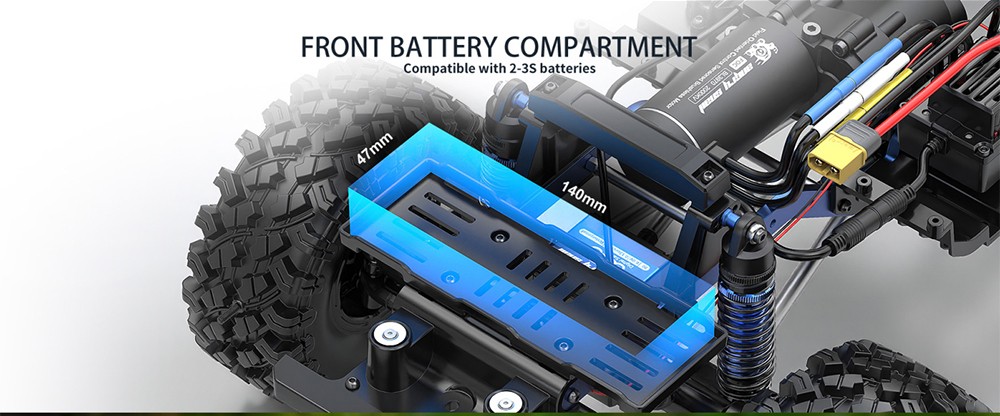

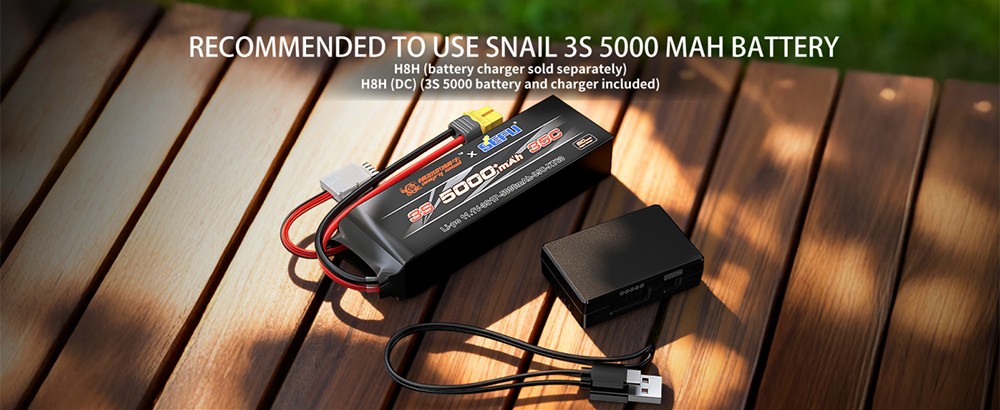

Recommended Battery Setup
The manufacturer lists a 3S 11.1V 5000mAh LiPo battery as an optional purchase. Check connector compatibility, battery dimensions and the manufacturer's voltage requirements before ordering a battery and charger.
Why Choose the MJX H8H New?
The MJX H8H New 1/8 Brushless RC Crawler is built for enthusiasts who want advanced crawling features rather than just high speed. Its sensored brushless power system, selectable two-speed transmission, portal axles and remote-controlled front and rear differential locks make it a compelling choice for technical trail driving and challenging off-road adventures.
